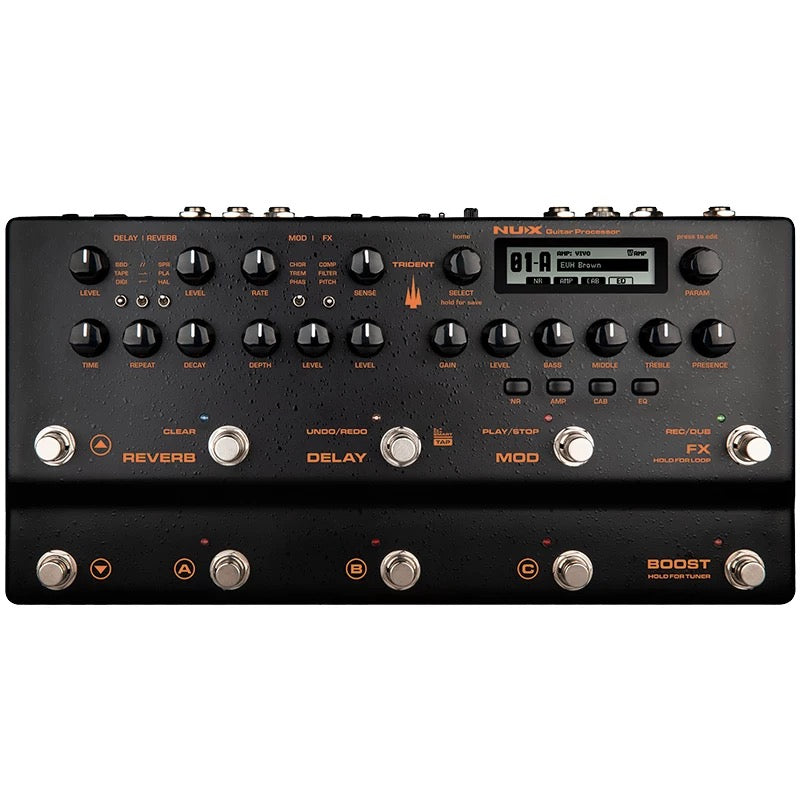

NUX Trident Amp Modeling and Multi-FX Pedal

Over 1500+ Happy Customers

NUX Trident Amp Modeling and Multi-FX Pedal

Name: NUX Trident Amp Modeling and Multi-FX Pedal
Brand: NUX
Price: 449.00 USD
Availability: InStock

Shipping calculated at checkout.

$449.00

In stock.

NUX Trident Amp Modeler & Multi-FX | TSAC-4K, 27 Amps

NUX · Trident · Amp Modeling & Multi-FX

Professional Amp Modeling. Every Effect You Need. One Pedal.

The Trident packs TSAC-4K white-box amp modeling, 27 amp models, 27 cab IRs, and a full effects chain into a gig-ready floor unit — with 1 ms system latency, MIDI in/out, and a 9V power supply you already own.

TSAC-4K Amp Modeling 27 Amp Models 27 Cabinet IRs 1 ms Latency MIDI In / Out USB-C Audio Interface

Amp Models

27+

Cabinet IRs (59 total slots)

1 ms

System Latency

109 dB

Dynamic Range

Core Technologies

Four technologies that make the Trident different

🎛️

TSAC-4K Amp Modeling

White-box physical modeling twice as complex as previous generations. Separate preamp and power amp simulations — tone shaped the way real amps work.

⚙️

Dual DSP Architecture

A dedicated DSP for effects and a separate DSP for amp modeling run in parallel — giving each domain full processing headroom with no shared overhead.

🔊

Cabinet IR Engine

27 factory cab IRs at 1024-sample resolution + 32 user IR slots. Four mic types with 3 positions each, plus low cut, high cut, and level controls per mic.

💻

Trident Editor Software

Deep sound design via the free desktop app (Mac/PC). Full parameter access, re-amping via USB-C, and IR library management — no menu-diving required.

Amp Library

27 amp models. 59 IR slots. Every tone covered.

Every amp model is built on the TSAC-4K engine — the same white-box physical modeling algorithm used by NUX's flagship units.

TSAC-4K Amp Models

Physical models of classic and modern amps built component-by-component. HIGH/LOW inputs and toggle switches for voicing give each amp authentic tonal range.

Factory Cabinet IRs

1024-sample cabinet impulse responses. Choose from 4 mic types at 3 positions each, with individual low cut, high cut, and level controls for precise tone shaping.

User IR Slots

Load your own or third-party cab IRs directly via Trident Editor. Choptones and other boutique IR makers offer dedicated Trident preset packs.

      4 patch cable jumping inputs: Connect directly to the power amp stage of your real amp — use the Trident purely as a preamp and effects unit in hybrid rig setups.


NUX Trident — amp models and cabinet IR engine

Effects & Performance

Full effects chain. 30-second looper. Ferocious live control.

The Trident is engineered for the stage. A complete multi-effects signal chain runs alongside the TSAC-4K amp modeling — all controlled by an intuitive layout with SELECT and PARAM encoders plus an LCD that shows you exactly what's happening in the chain, in real time.

Noise Gate Compressor Drive / EFX Amp + Cabinet EQ Modulation Delay Reverb Wah / Pitch 30s Looper

30-second phrase looper with PRE or POST positioning in the signal chain
Send/Return FX loop for integrating external pedals
MIDI In/Out (1/8" mini with included 5-pin adapters) for full rig control
EXP. Pedal input for expression pedal or external footswitch
SELECT & PARAM encoders for fast hands-on parameter editing on stage
LCD display showing block status and parameter values at a glance

Trident Editor & Studio

Deep sound design. Studio-grade re-amping.

The free Trident Editor (Mac/PC) gives you complete parameter control over every block in the chain — far beyond what's accessible from the hardware alone. Connect via USB-C and the Trident becomes a full USB audio interface for DAW recording, real-time monitoring, and re-amping tracks you've already recorded.

Trident Editor software for Mac and PC (free download)
Full preset creation, editing, and organization from your desktop
Custom IR loading and library management via editor
USB-C audio interface: record directly into your DAW at 48kHz / 32-bit
Re-amp previously recorded DI tracks through the Trident in real time
Firmware updates handled directly through the editor software

Connectivity

Every connection a working guitarist needs.

From direct-to-PA live performance to studio recording and MIDI-controlled rigs — the Trident connects to everything.

Inputs

1 × 1/4" Instrument (1 MΩ)
1 × 1/8" AUX In
1 × 1/4" Return (FX Loop)
4 × Patch Cable Jumping Inputs
1 × EXP. Pedal Input

Outputs

2 × XLR Balanced (DI) Out
2 × 1/4" Unbalanced Out (1 kΩ)
1 × 1/4" Send (FX Loop)
1 × 1/4" Headphones (47 Ω)

Digital / Control

1 × USB-C (audio interface, MIDI, firmware)
MIDI In / Out (1/8" — 5-pin adapters included)
Sampling Rate: 48kHz / 32-bit
System Latency: 1 ms

      Power: Standard 9V DC (ACD-006A adapter included) — compatible with any guitar pedalboard power supply.
        |
      Die-cast aluminum case: Built for the touring guitarist. The Trident's chassis is engineered to take whatever the road throws at it.


NUX Trident — rear panel and I/O connections

Compare

How does the Trident compare?

See how the Trident stacks up against the NUX MG-50Li — the flagship multi-FX processor with built-in battery and expanded amp library.

	This Item NUX Trident Amp Modeling and Multi-FX Pedal $449.00	NUX MG-50Li Amp Modeler & Guitar Effects Processor $499.00 View MG-50Li →
Pedal Type	Multi-FX	Multi-FX
Amp Modeling Tech	TSAC-4K White-Box	TS/AC-4K + Deep Image Profiling
Amp Models	27	88 (28 + 30 + 30 user)
Cabinet IRs	27 factory + 32 user slots	42 factory + 60 user slots
System Latency	1 ms	3 ms
Dynamic Range	109 dB	110 dB
Analog / Digital	Digital	Digital
Simultaneous FX Blocks	Full FX chain	14 × FX Blocks
Looper	30-second Phrase Looper	—
Inputs	1 × 1/4", 1 × 1/8" (aux), 1 × 1/4" (return)	1 × 1/4", 1 × 1/8" (aux), 4 × 1/4" Return
Outputs	2 × XLR (DI), 2 × 1/4"	2 × XLR (DI), 2 × 1/4"
Headphones	1 × 1/4"	1 × 1/8"
MIDI I/O	In / Out (1/8" w/ adapters)	In / Out (full-size)
Send / Return	1 × 1/4"	4 × 1/4" Send + 4 Return
USB	1 × USB-C	2 × USB-C
Expression Control	EXP. Pedal Input (external)	Built-in Expression Pedal
Built-in Battery	—	Yes — 6 hr rechargeable
Software	Trident Editor (Mac/PC)	NUX Audio App (iOS/Android/Mac/PC)
Power Source	9V DC (included) — standard pedalboard	12V DC + Built-in Battery
Construction	Die-cast aluminum	Aluminum
Price	$449.00	$499.00

Need a built-in battery and expanded amp library? View the NUX MG-50Li →

In the Box

Everything you need. Ready to plug in tonight.

🎛️

Trident Unit

Die-cast aluminum multi-FX amp modeler with dual DSP and LCD display

🔌

9V Power Adapter

ACD-006A 9V DC adapter — standard pedalboard voltage

🔗

USB-C Cable

For audio interface, Trident Editor, and firmware updates

🎵

2 × MIDI Adapters

1/8" to 5-pin MIDI adapters for MIDI In and Out

Technical Specifications

NUX Trident — Full Specs

Model	NUX Trident
Pedal Type	Multi-FX Amp Modeler & Effects Processor
Amp Modeling	TSAC-4K white-box physical modeling — 27 models
Cabinet Simulation	27 factory IRs (1024-sample) + 32 user IR slots = 59 total
Mic Options	4 mic types × 3 positions each; low cut / high cut / level per mic
DSP Architecture	Dual DSP — dedicated processor per amp modeling and effects
Analog / Digital	Digital — 48kHz / 32-bit floating-point
System Latency	Minimum 1 ms
Dynamic Range	109 dB
Phrase Looper	30 seconds, PRE or POST position in signal chain
Input Impedance	1 MΩ (instrument input)
Output Impedance	1 kΩ (main output)
Headphones Impedance	47 Ω
Inputs	1 × 1/4" instrument, 1 × 1/8" AUX, 1 × 1/4" Return (FX loop), 4 × patch cable jumping inputs, 1 × EXP. Pedal
Outputs	2 × XLR balanced DI, 2 × 1/4" unbalanced, 1 × 1/4" Send (FX loop)
Headphones	1 × 1/4" (47 Ω)
MIDI	In / Out via 1/8" mini jacks (5-pin adapters included)
USB	1 × USB-C (audio interface + firmware + Trident Editor)
Power Supply	9V DC, ACD-006A adapter (included)
Construction	Die-cast aluminum chassis
Software	Trident Editor V2.0.1 (Mac/PC); ASIO drivers for Windows
Colors Available	Black / White
